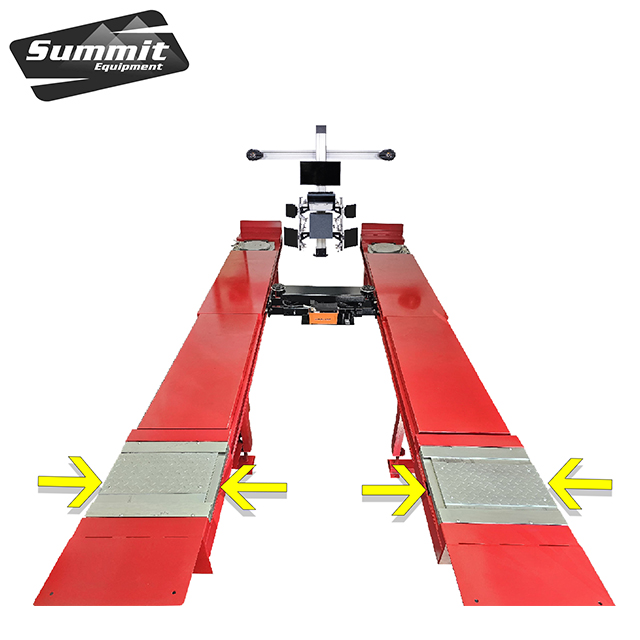

SUMMIT 800-8A PASSENGER AND LIGHT TRUCKHYDRAULIC PLAY DETECTOR FOR THE ALIGNMENT PIT RACK – OR IN-GROUND
Maximum axle weight: 2600 kg
Recommended track width (min – max): 1000 mm – 2000 mm
Left and right test plate size: 500×270 mm
Lateral movement: 80 mm
Longitudinal movement: 50 mm
Movement speed: 50 mm/sec
Maximum horizontal force on each plate: 8000 N
Description
Increase the productivity of your alignment bay: Introducing the new 8-Axis Suspension Play Detector. It is a cutting-edge tool designed for the meticulous inspection of vehicle suspension systems, offering unparalleled precision with its advanced 8 axis movement capability. Suitable for a broad spectrum of vehicles, from cars to light-trucks. The play detector can fit onto alignment racks, 4 post lifts, and in-ground installations. No need to lift the vehicle before the alignment process or to move the vehicle to a 2-post lift, simply pull onto the alignment bay and check for play on the suspension.
Maximum axle weight: 2600 kg
Recommended track width (min – max): 1000 mm – 2000 mm
Left and right test plate size: 500×270 mm
Lateral movement: 80 mm
Longitudinal movement: 50 mm
Movement speed: 50 mm/sec
Maximum horizontal force on each plate: 8000 N
