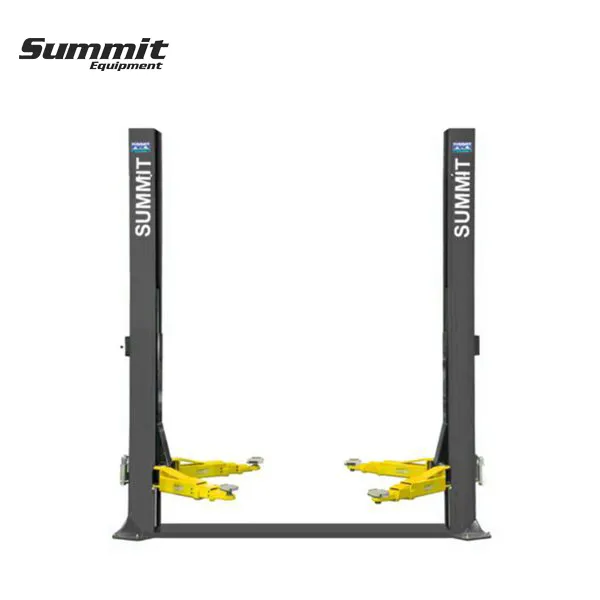

Summit 6135AM Base-Type 2 Post Lift
BASE-TYPE 2 POST LIFT
Electro-hydraulic base-type 2 post lift suitable for lifting motor vehicles with a weight of 4 Ton. All mechanical parts such as columns, carriages and lift arms have been built in steel plate to make the frame stiff and strong while keeping a low weight. Manual safety lock release ensure ultra-reliability.
- Maximum capacity : 4000 kg
- Maximum stroke : 940mm
- Max. lifting height excl extensions : 1950mm
- Min. adaptor height : 98mm
- Overall height : 2740mm
- Overall width : 3353
- Lifting time : 55 seconds
- Lowering time : 30 seconds
- Gross weight : 655kg
- Motor : 2.2kw
- Power supply : 220V
