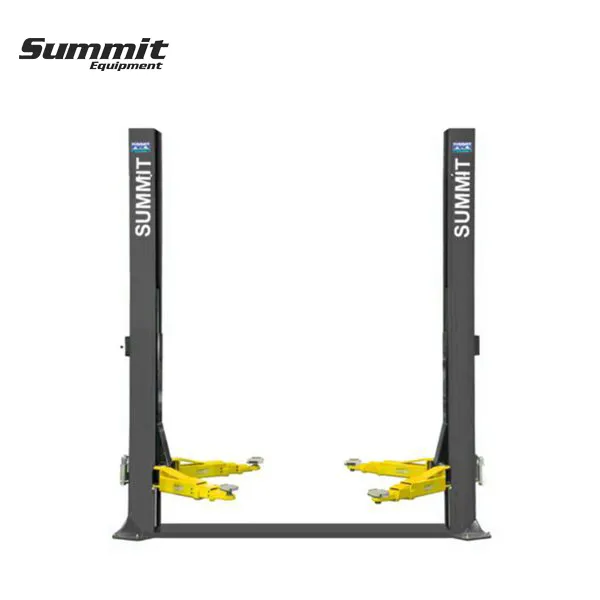

SUMMIT 6135AM BASE-TYPE 2 POST LIFT

BASE-TYPE 2 POST LIFT
Electro-hydraulic base-type 2 post lift suitable for lifting motor vehicles with a weight of 4 Ton. All mechanical parts such as columns, carriages and lift arms have been built in steel plate to make the frame stiff and strong while keeping a low weight. Manual safety lock release ensure ultra-reliability.

Maximum capacity : 4000 kg

Maximum stroke : 940mm

Max. lifting height excl extensions : 1950mm

Min. adaptor height : 98mm

Overall height : 2740mm

Overall width : 3353

Lifting time : 55 seconds

Lowering time : 30 seconds

Gross weight : 655kg

Motor : 2.2kw

Power supply : 220V
