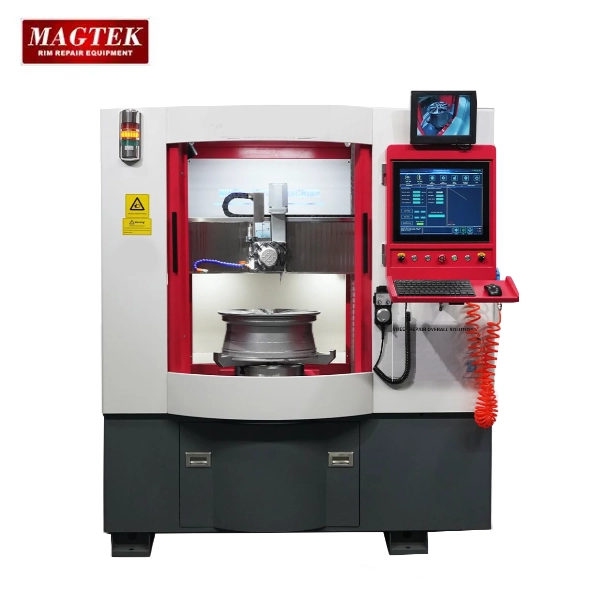

Magtek Diamond Laser XL CNC Machine with Touchscreen Interface
Wheel max cutting size – 35 inch
Machine floor space – 1.68 square metres
X/Z Axis travel – 914mm / 590mm
No & type of guide in X/Z Axis – 2/4 Linear guide rails
X/Z axis position accuracy – 0.001mm
Chuck & claw – 13” chuck with 3 extended claw (6 Claw Available)
Range of spindle speed – 10 – 1500 rpm
Machine motors power – 9.02 Kw
Type of tool holder – 4 position electric tool holder
Detection method – Ruby contact probe (Laser detection available)
Power Supply 380V
Dimensions: 1650 x 1020 x 1960 mm
