| V-0.25/8 | W0.67/8 | W0.9/8 | W-1.5/8 | W-2.0/8 | |
|---|---|---|---|---|---|
| Motor Power | 2.2kw / 3HP | 5.5kw / 7.5HP | 7.5kw / 10HP | 11kw / 15HP | 15kw / 20HP |
| Pressure | 8 Bar | 8 Bar | 8 / 12.5 Bar | 8 / 12.5 Bar | 8 / 12.5 Bar |
| PSI | 116 | 116 | 116 / 179 | 116 / 179 | 116 / 179 |
| Volt | 220v | 380v | 380v | 380v | 380v |
| Motor Speed | 950RPM | 924RPM | 930RPM | 749RPM | 725RPM |
| CFM | 8.8 | 23.7 | 32 | 53 | 70.7 |
| Pressure Vessel | 100 / 150 / 200 lt | 270lt | 270lt | 400lt | 400lt |

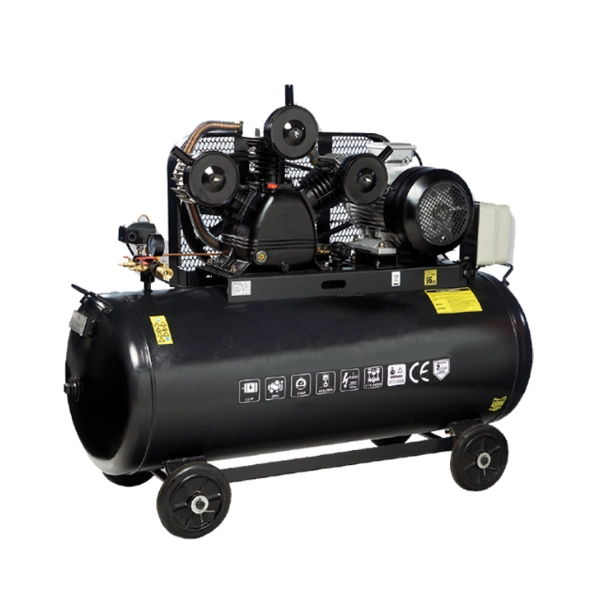

DT Piston Compressors – High Volume
The single-stage air-cooled stationary belt-drive compressor range is a fully industrial heavy-duty series. It employs a low RPM, multi cylinder, cast iron pump configuration using SKF bearings to ensure a longer service life; low oil consumption, low noise and good heat dissipation are part of the design.
