| DB-10FF | DB-15FF | DB-20FF | DB-30FF | SR7.5VSD | |
|---|---|---|---|---|---|
| Motor Power | 7.5kw / 10HP | 11kw / 15HP | 15kw / 20HP | 22kw / 30HP | 5.5kw / 7.5hp |
| CFM @ 100 PSI | 36 CFM | 57 CFM | 74 CFM | 119 CFM | 25 CFM |
| CFM @ 116 PSI | 34 CFM | 54 CFM | 71 CFM | 113 CFM | |
| CFM @ 145 PSI | 31 CFM | 49 CFM | 65 CFM | 104 CFM | |
| CFM @ 174 PSI | 29 CFM | 42 CFM | 58 CFM | 91 CFM | |
| Power Supply | 380V | 380V | 380V | 380V | 220V |
| Drive Type | Direct | Direct | Direct | Direct | Direct |
| Start System | Direct | Star-Delta | Star-Delta | Star-Delta | Star-Delta |
| Nett Weight | 390kg | 580kg | 610kg | 650kg | 390kg |
| Pressure Vessel | 360lt | 500lt | 500lt | 500lt | 200lt |

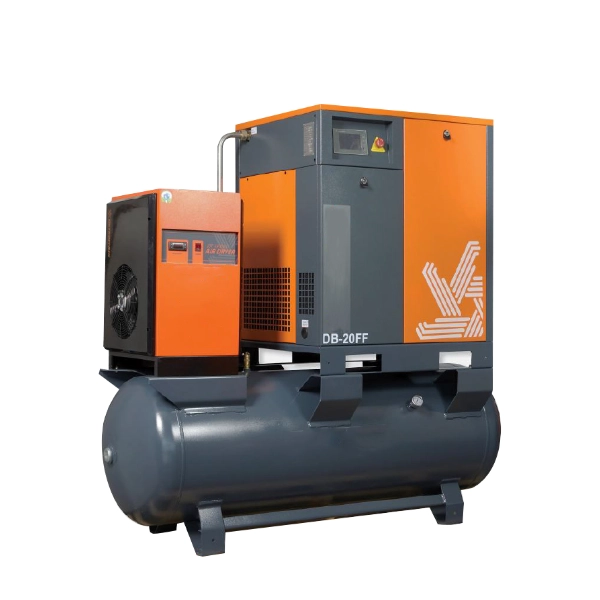

DT Full-Feature Screw Compressors
The DB-FF Series screw compressor is an all-in-one solution to compressed air. The dryer, tank and screw are assembled in a modular and efficient assembly that allows for easy installation and maintenance of the machine. The dryers feature a compact and high-efficiency aluminium plate heat-exchange unit.
