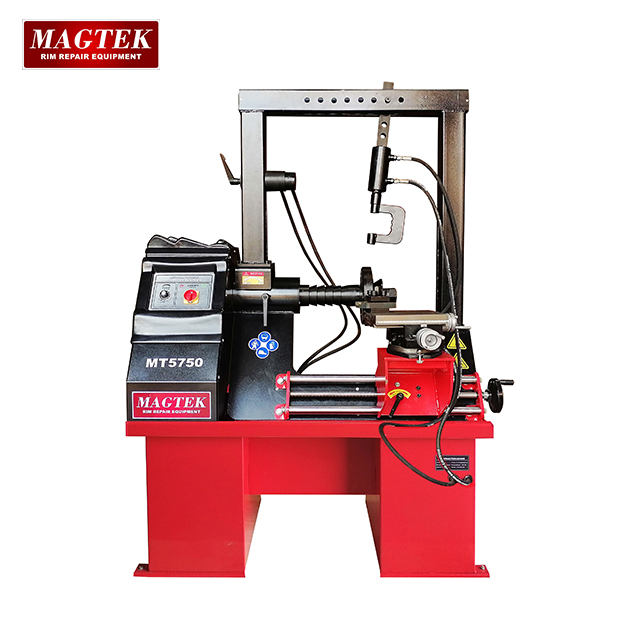

Magtek Mt5750 Rim Repair Machine with Bridge-Support, Lathe and Dual-Action Jack Cylinder
The MAGTEK MT5750 Rim Straightening Machine is used to correct defective rims/mags. It straightens the wheels and uses a lathe unit designed to remove excess welding sections from the repaired wheel surface. The MT5750 features a bridge-support frame that makes approaching the wheel from different angles easier and more accessible, allowing for both pushing and pulling on the rim. The MT5750 allows the operator to lock the pump into position instead of trying to hold this heavy tool by hand. The MT5750 also features variable speed control on the spindle motor for safer and more precise using of the lathe. (Optional polisher available)
- Wheel Repair Range: 10 – 26 Inch
- Tool Post: 4
- Speed Range of Spindle: 0 – 500 r/min
- Working Pressure: 15 Mpa
- Hydraulic Motor Power: 1.5 kw
- Spindle Motor Power: 750 W
- Power Supply: 220V
- Weight: 350 kg
